Timer 555 bistable

Turning the timer into a flip-flop

bistable flip-flop timer

Sophie Seewald
English
Advanced

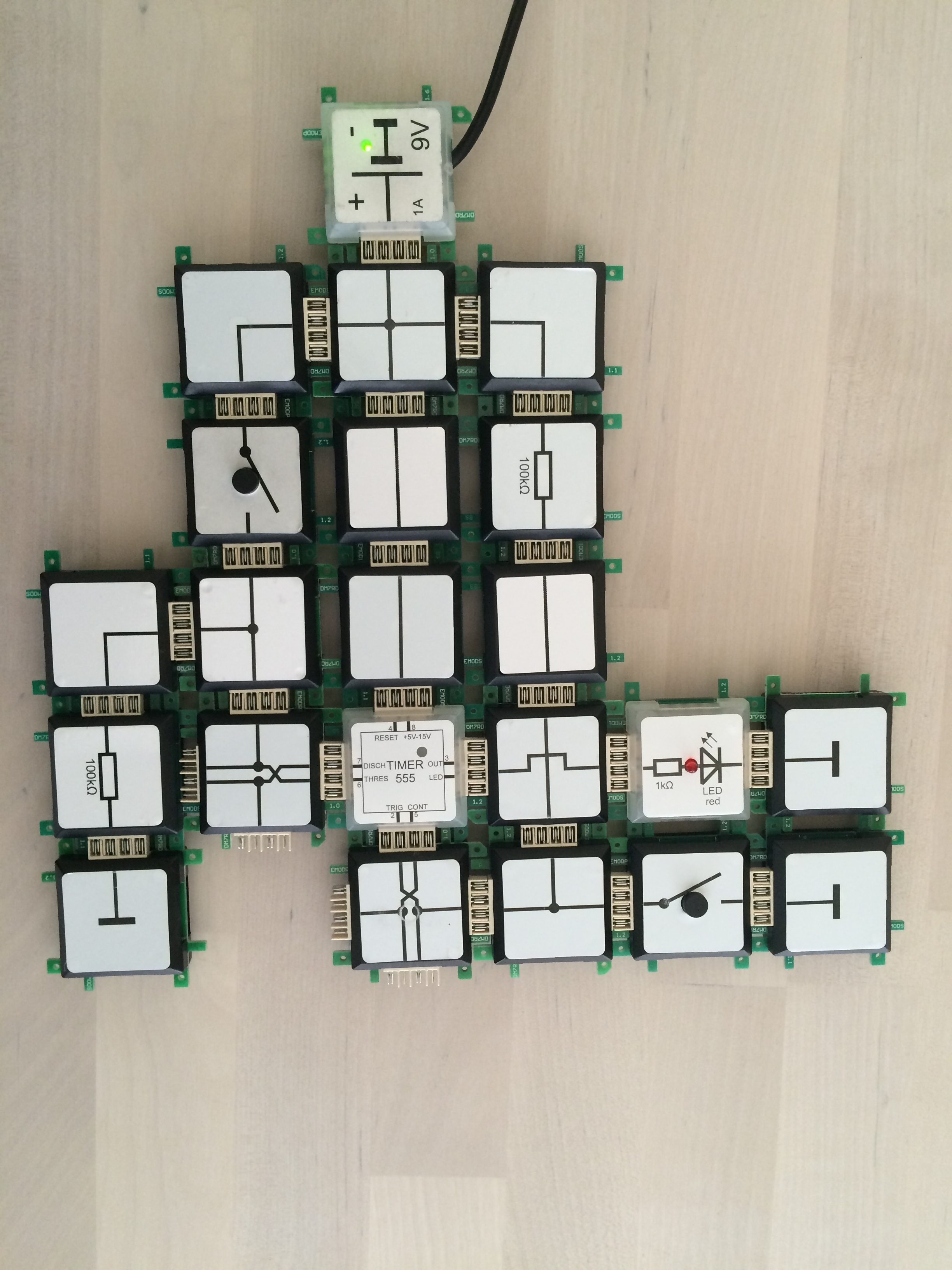

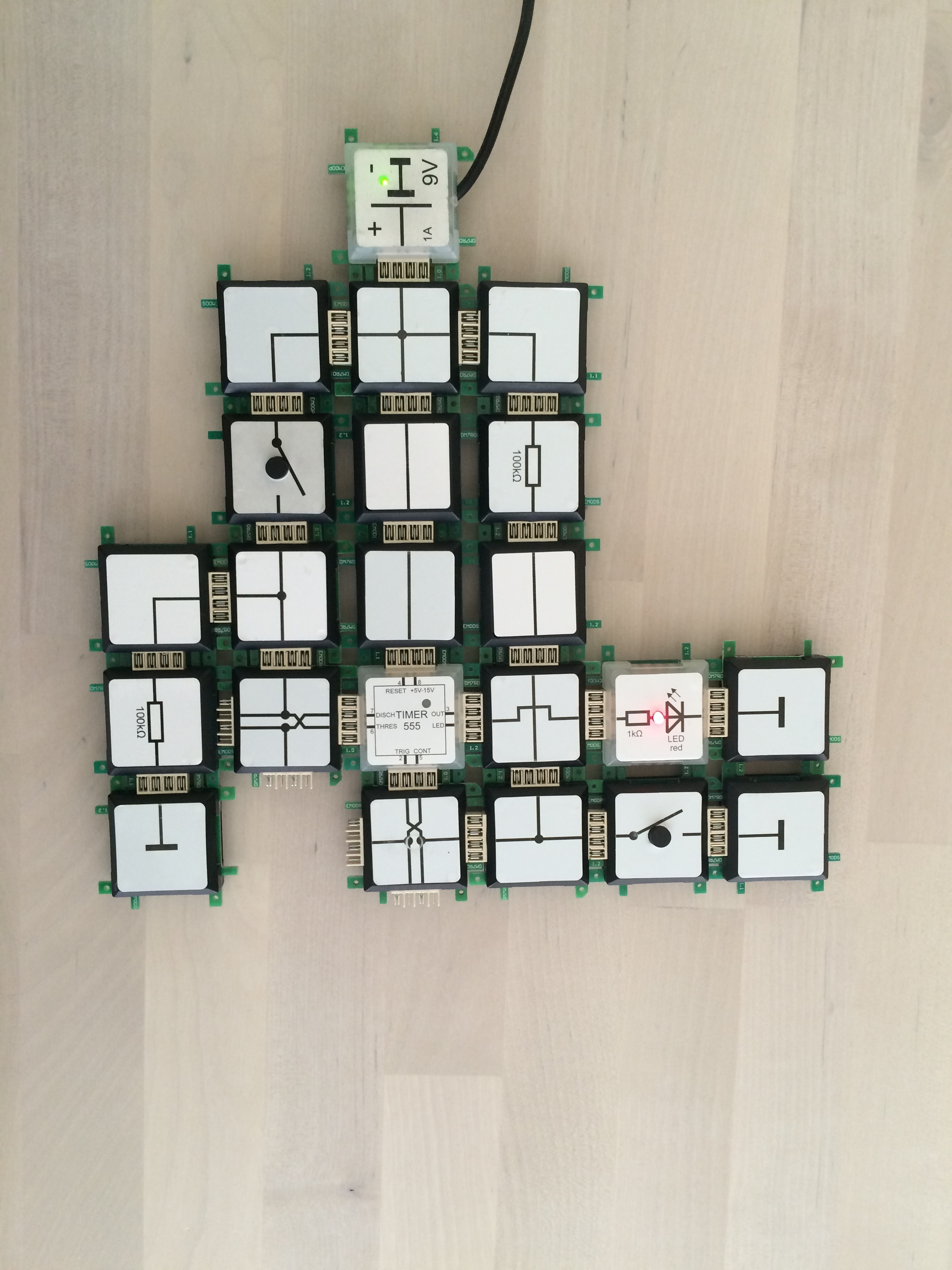

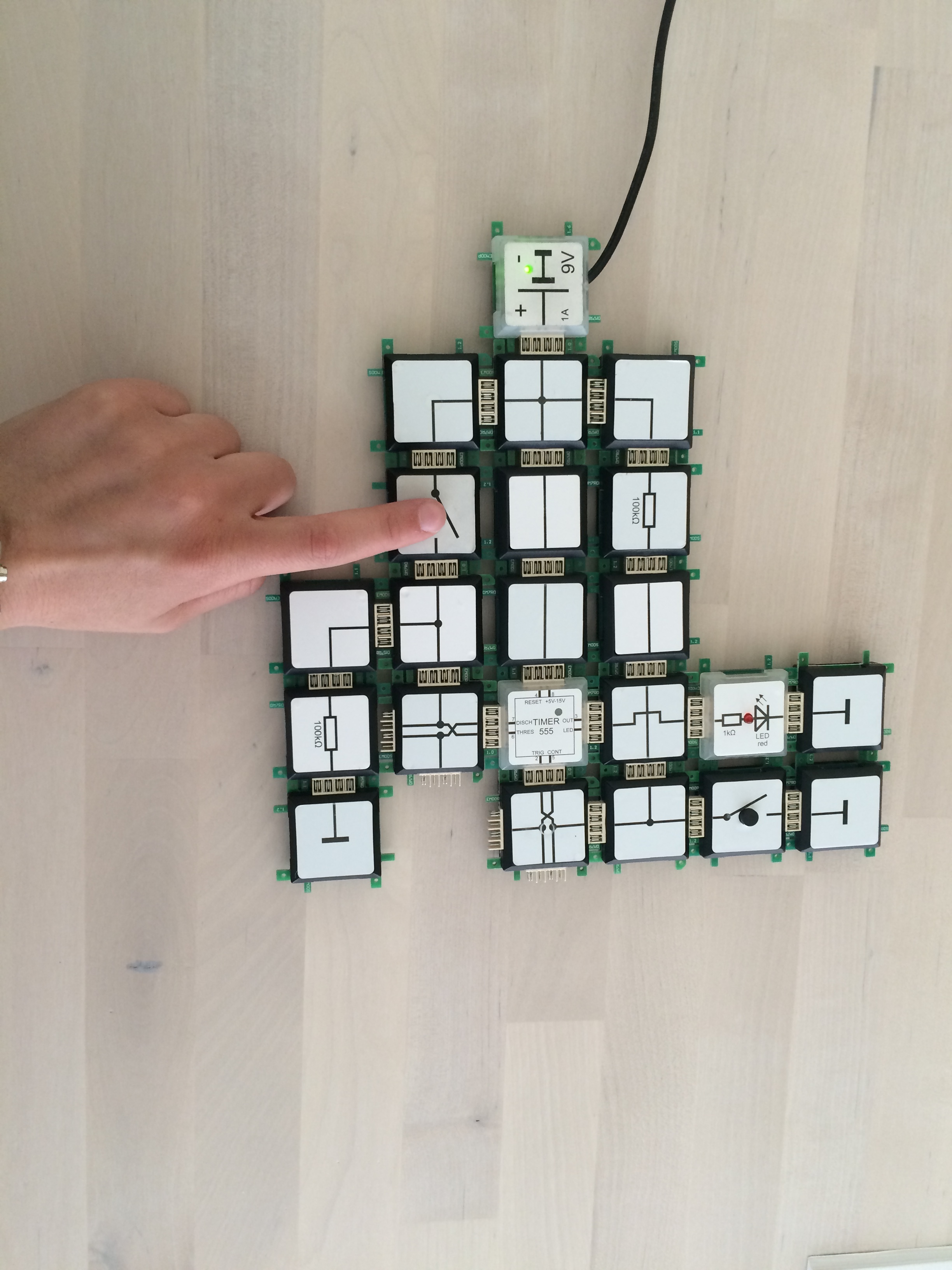

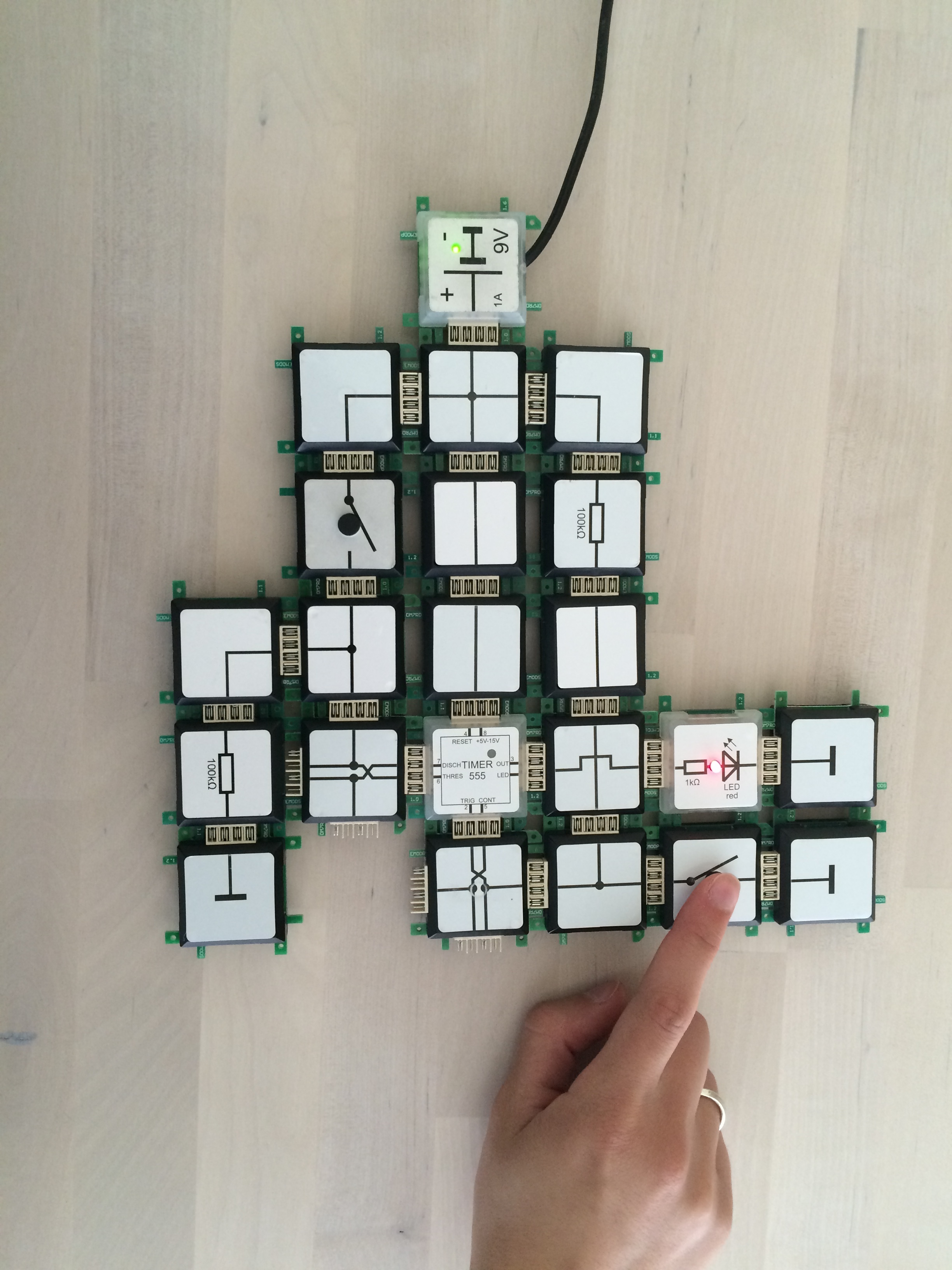

In this experiment we use the timer 555-brick as a flip-flop to control the output signal. The signal remains active until another input is activated. The right button, underneath the LED-brick is used to light up the red LED. If the contact is disconnected, the LED continues to to be on. The LED can be switched off, by pressing the other push button.
The signal is now reset and retained, until an different input is made. To reset, the so called threshold input is used.

Laisser un commentaire

Votre adresse de messagerie ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Art. 113636
Anzahl: 1
Art. 118627
Anzahl: 1
Art. 113644
Anzahl: 2
Art. 113649
Anzahl: 3
Art. 113682
Anzahl: 3
Art. 113632
Anzahl: 1
Art. 113634
Anzahl: 1
Art. 113635
Anzahl: 3
Art. 113675
Anzahl: 2
Art. 113630
Anzahl: 2
Art. 113631
Anzahl: 1
Art. 113633
Anzahl: 2
